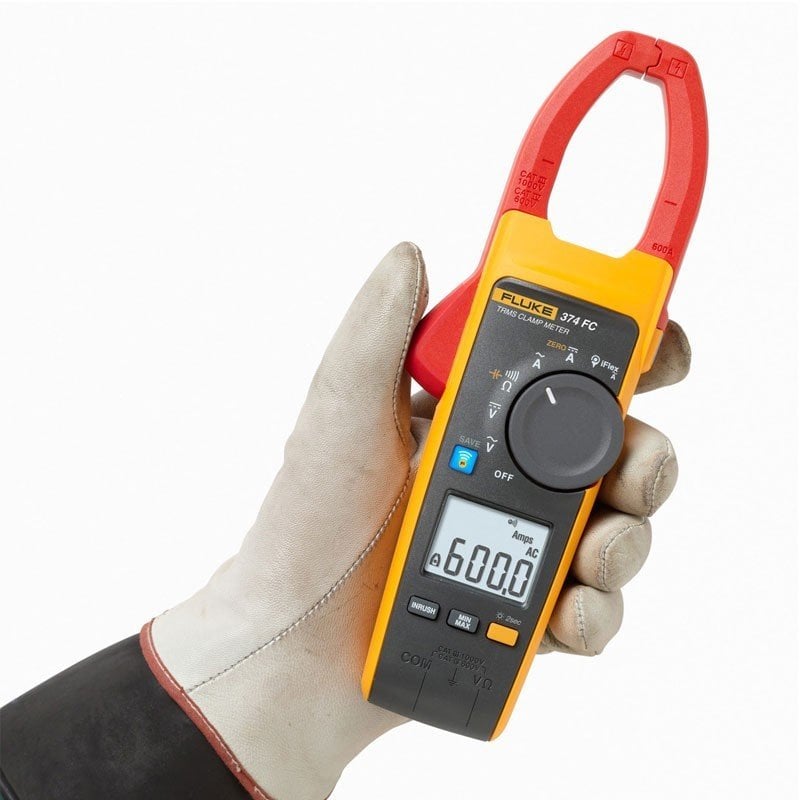

Fluke 374 FC Wireless AC True RMS Pensampermetre

Fluke 374FC wireless AC/DC true rms iflex pensampermetre

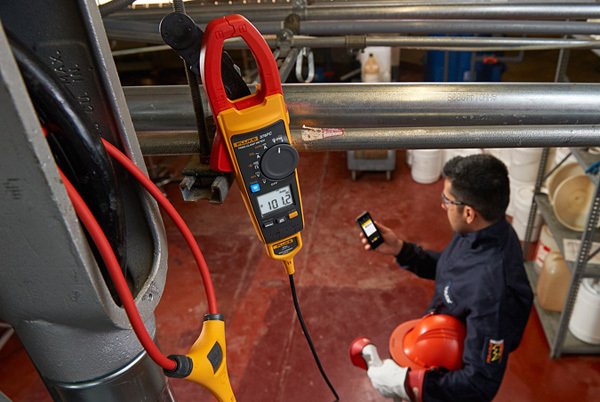

Elektrikçiler ve bakım teknisyenleri için en sinir bozucu görevlerden bazıları aralıklı hataları arızaları bulmaktır . Fluke 374 FC pensampermetre makine başında teknisyen bulunması gerek kalmadan , tam aralıklı hataları tespit ölçümleri yapabilmektedir. Ölçümler kablosuz akıllı telefonlar veya tabletler üzerine Fluke Bağlan uygulamasını indirerek otomatik bağlantı kurabilirsiniz. Ark Yapan, Hareketli ve uzaktaki makineleri izleme kolaylığı sağlayarak,  teknisyenlerin güvenliğini de artırır

General Specifications
AC Current via Jaw
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ±5 digits (10 Hz to 100 Hz)
	2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)	2.5 @ 600 A
	Add 2% for C.F. >2
AC Current via Flexible Current Probe
Range	2500 A
Resolution	0.1 A (≤ 600 A)
	1 A (≤ 2500 A)
Accuracy	3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)	2.5 at 1400 A
	1.42 at 2500 A
	Add 2% for C.F. > 2
Position Sensitivity
	i2500-10 Flex	i2500-18 Flex
A
Distance from Optimum	0.5 in (12.7 mm)	1.4 in (35.6 mm)
Error	±0.5 %	±0.5 %
B
Distance from Optimum	0.8 in (20.3 mm)	2.0 in (50.8 mm)
Error	±1.0 %	±1.0 %
C
Distance from Optimum	1.4 in (35.6 mm)	2.5 in (63.5 mm)
Error	±2.0 %	±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ±5 digits
AC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1.5% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1% ±5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1% ±5 digits
Resistance
Range	6000 Ω
Resolution	0.1 Ω (≤600 Ω)
	1 Ω (≤6000 Ω)
Accuracy	1% ±5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤ 100 μF)
	1 μ F (≤ 1000 μF)
Accuracy	1% ±4 digits
Mechanical Specifications
Maximum voltage between any terminal and earth ground	1000 V
Batteries	2 AA, NEDA 15A, IEC LR6
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Operating humidity - non-condensing (< 10°C)	≤90% RH (at 10 °C to 30 °C)
	≤75% RH (at 30 °C to 40 °C)
	≤45% RH (at 40 °C to 50 °C)
Operating altitude	3000 m
Storage altitude	12,000 m
Size (L x W x H)	249 x 85 x 45 mm
Weight	395 g
Jaw opening	34 mm
Flexible current probe diameter	7.5 mm
Flexible current probe cable length (head to electronics connector)	1.8 m
Safety	IEC 61010-1, Pollution Degree 2
	IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
	IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V
IP rating	IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID	T68-FBLE IC:6627A-FBLE
