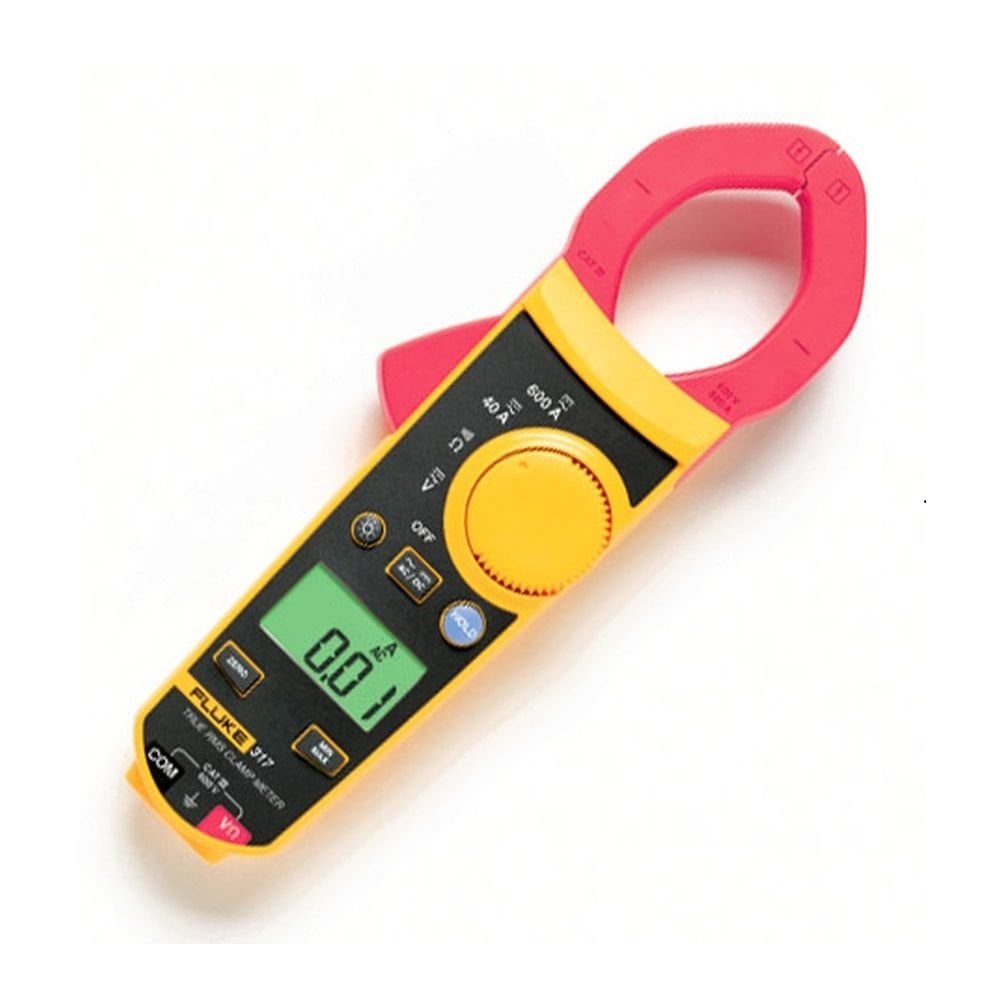

Fluke 317 AC/DC 600Amp True RMS Pensampermetre
Fluke

Fluke 317 AC/DC 600Amp True RMS Pensampermetre

Kategori
Pensampermetre
Marka
Fluke
Stok Kodu
FLUKE 317
Garanti Süresi
24 Ay
Fiyat
294,00 USD + KDV
12.030,42 TL den başlayan taksitlerle!!
%11
12.030,42 TL
13.517,32 TL
Paylaş :
Ürün Bilgisi

The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and have a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equips with In-rush current and Frequency functions for testing motors, lighting, etc.


These affordable instruments combine a compact package with a strong feature set:



  • Special 40A high accuracy AC/DC high measure, 1.6% accuracy, 0.01A resolution
  • Small body and jaws fit perfectly in your hand and into tight places
  • Large, backlit display is easy-to-see in less than ideal conditions
  • In-rush current function (319) for measuring starting current for motors, lighting, etc.
  • Measuring current Frequency (319)
  • Resolution up to 0.01A and 0.1 V
  • Measures AC/DC current to 1000 A (319)
  • Measures AC/DC volts to 600 V
  • Resistance measurement to 4000 Ω
  • Continuity for quick checking of shorts
  • Auto-shut-off maximizes battery life so the meter works when you need it
  • Display hold function
  • One year warranty

General Specifications
Digital Display
 6000 count resolution
Low Battery Indication
 Displays a signal when the batteries are below their required voltage
Power Source
 Three AAA IEC LR03 batteries
Clamp Opening Size
 1.45 in (37 mm)
Jaw Diameter
 1.45 in (37 mm)
Dimensions (L x W x H)
 6.39 in x 2.29 in x 1.20 in
 (162.4 mm x 58.25 mm x 30.5 mm)
Weight
 approximately 13.5 oz (384 g) (batteries included)
Auto Range
 Available in Ohms
Safety
 CE
 EN/IEC 61010-1 and IEC 61010-2-032
 Measurement Category: 600V CAT III



317 Electrical Specifications
Current AC
Range  40.00 A, 600.0 A
Resolution  0.01 A, 0.1 A
Accuracy  1.6% ± 6 digit (50-60 Hz) {40 A}
 2.5% ± 8 digit (60-500 Hz) {40 A}
 1.5% ± 5 digit (50-60 Hz) {600 A}
 2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response  rms
Current DC
Range  40.00 A, 600.0 A
Resolution  0.01 A, 0.1 A
Accuracy  1.6% ± 6 digit (40 A)
 1.5% ± 5 digit (600 A)
Voltage AC
Range  600.0 V
Resolution  0.1 V
Accuracy  1.5% ± 5 digit (20-500Hz)
AC response  rms
Voltage DC
Range  600.0 V
Resolution  0.1 V
Accuracy  1% ± 4 digit
Resistance
Range  400.0 Ω, 4000 Ω
Resolution  0.1 Ω, 1 Ω
Accuracy  1% ± 5 digit
Continuity
 ≤ 30 Ω
Inrush
Integration time  N/A
Frequency
Range  N/A
Accuracy  N/A
Trigger Level  N/A



319 Electrical Specifications
Current AC
Range  40.00 A, 600.0 A, 1000 A
Resolution  0.01 A, 0.1 A, 1 A
Accuracy  1.6% ± 6 digit (50-60 Hz) {40 A}
 2.5% ± 8 digit (60-500 Hz) {40 A}
 1.5% ± 5 digit (50-60 Hz) {600/1000 A}
 2.5% ± 5 digit (60-500 Hz) {600/1000 A}
Crest Factor add 2% into spec for CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
AC response  rms
Current DC
Range  40.00 A, 600.0 A, 1000 A
Resolution  0.01 A, 0.1 A, 1 A
Accuracy  1.6% ± 6 digit (40 A)
 1.5% ± 5 digit (600/1000 A)
Voltage AC
Range  600.0 V
Resolution  0.1 V
Accuracy  1.5% ± 5 digit (20-500Hz)
AC response  rms
Voltage DC
Range  600.0 V
Resolution  0.1 V
Accuracy  1% ± 4 digit
Resistance
Range  400.0 Ω
 4000 Ω
Resolution  0.1 Ω
 1 Ω
Accuracy  1% ± 5 digit
Continuity
 ≤ 30 Ω
Inrush
Integration time  100 ms
Frequency
Range  5.0 - 500.0 Hz
Accuracy  0.5% ± 5 digit
Trigger Level  10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A

The accuracy specifications aply at 73 °F ± 41 °F (23 °C ± 5 °C)

Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C.

True rms for ac V and ac A accuracy is specified from 5% to 100% of range.



Environmental Specifications
Operating Temperature
 14°F to 122°F (-10 °C to 50 °C)
Storage Temperature
 -40 °F to 140 °F (-40 °C to 60 °C)
Operating Humidity
 Non condensing (< 50 °F) (< 10 °C)
 90 % RH (50 °F to 86 °F) (10 °C to 30 °C)
 75 % RH (86 °F to 104 °F) (30 °C to 40 °C)
 45 % RH (104 °F to 122 °F) (40 °C to 50 °C)
 (Without Condensation)
Operating Altitude
 1 mile (2000 meters) above mean sea level
Storage Altitude
 7 miles (12,000 meters) above mean sea level
IP Rating
 IP40
Vibration Requirements
 Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis
Drop Test Requirements
 3 ft (1 m) drop test, six sides, oak floor
EMI, RFI, EMC
 Instrument unspecified for use in EMC field ≥ 0.1 V/m
Temperature Coefficients
 0.1x (specified accuracy)/ °C
 (<64 °F or > 82° F)
 (<18 °C or > 28 °C)

Model Name Description
Fluke 317/319 The Meter ships with:
  • Test Leads
  • Soft Carrying Case
  • Three AAA batteries (Installed)
  • 317/319 User Manual
